After 20 years of civil development and application, titanium fasteners have been widely used in chemical equipment, aerospace, and ship equipment, as small as mobile phone screws, medical, and fasteners. With the expansion of application fields, The manufacturing process of titanium fasteners is constantly developing and breaking through. In order to meet market demand, the manufacturing process of fasteners will become more and more advanced. Today, let us talk the processing of machining and hot forging.


Process overview:

Hot Forging: After cutting, raw material bars are heated to appropriate temperature. Then put them into mould for head shaping. Hot forging is often used to produce bolts, nuts, and some non-standard parts.


Machining: Raw material bars become finished products through cutting, milling, thread rolling, and other processing methods.

The company's common product inventory table

Product

Material

standard

specification

Technology

Quantity/pc

Hex Bolts

Gr2

DIN933

M3*10

Machining

1350

Hex Bolts

Gr2

DIN933

M3*15

Machining

1300

Hex Bolts

Gr2

DIN933

M3*20

Machining

2832

Hex Bolts

Gr2

DIN933

M4*10

Machining

7120

Hex Bolts

Gr2

DIN933

M4*15

Machining

1523

Hex Bolts

Gr2

DIN933

M4*20

Machining

2461

Hex Bolts

Gr2

DIN933

M4*25

Machining

2676

Hex Bolts

Gr2

DIN933

M4*30

Machining

1390

Hex Bolts

Gr2

DIN933

M5*10

Machining

4480

Hex Bolts

Gr2

DIN933

M5*10

Hot forging

1578

Hex Bolts

Gr2

DIN933

M5*12

Hot forging

3865

Hex Bolts

Gr2

DIN933

M5*15

Hot forging

2719

Hex Bolts

Gr2

DIN933

M5*20

Hot forging

1059

Hex Bolts

Gr2

DIN933

M5*25

Hot forging

1863

Hex Bolts

Gr2

DIN933

M6*10

Hot forging

2657

Hex Bolts

Gr2

DIN933

M6*15

Hot forging

2014

Hex Bolts

Gr2

DIN933

M6*20

Hot forging

2830

Hex Bolts

Gr2

DIN933

M6*30

Hot forging

1150

Hex Bolts

Gr2

DIN933

M6*40

Hot forging

1223

Hex Bolts

Gr2

DIN933

M8*10

Machining

2740

Hex Bolts

Gr2

DIN933

M8*15

Hot forging

4873

Hex Bolts

Gr2

DIN933

M8*20

Hot forging

1824

Hex Bolts

Gr2

DIN933

M8*25

Hot forging

2697

Hex Bolts

Gr2

DIN933

M8*30

Hot forging

1287

Hex Bolts

Gr2

DIN933

M8*35

Hot forging

1187

Hex Bolts

Gr2

DIN933

M8*40

Hot forging

3312

Hex Bolts

Gr2

DIN933

M8*45

Hot forging

3729

Hex Bolts

Gr2

DIN933

M8*50

Hot forging

1273

Hex Bolts

Gr2

DIN933

M8*55

Hot forging

5637

Hex Bolts

Gr2

DIN933

M8*60

Machining

1320

Hex Bolts

Gr2

DIN933

M10*25

Hot forging

1516

Hex Bolts

Gr2

DIN933

M10*40

Hot forging

2405

Hex Bolts

Gr2

DIN933

M10*45

Hot forging

3729

Hex Bolts

Gr2

DIN933

M10*50

Machining

1284

Hex Bolts

Gr2

DIN933

M10*55

Machining

1907

Hex Bolts

Gr2

DIN933

M10*60

Machining

2072

Hexagon Socket Head

Gr5

DIN912

M3*10

Cold punching hex

1650

Hexagon Socket Head

Gr5

DIN912

M3*15

Cold punching hex

1952

Hexagon Socket Head

Gr5

DIN912

M4*8

Cold punching hex

1799

Hexagon Socket Head

Gr5

DIN912

M4*10

Cold punching hex

1326

Hexagon Socket Head

Gr5

DIN912

M4*15

Cold punching hex

1640

Hexagon Socket Head

Gr5

DIN912

M4*20

Cold punching hex

2831

Hexagon Socket Head

Gr5

DIN912

M4*25

Cold punching hex

3360

Hexagon Socket Head

Gr5

DIN912

M4*30

Cold punching hex

2652

Hexagon Socket Head

Gr5

DIN912

M5*15

Cold punching hex

1245

Hexagon Socket Head

Gr5

DIN912

M5*16

Cold punching hex

3648

Hexagon Socket Head

Gr5

DIN912

M5*20

Cold punching hex

8808

Hexagon Socket Head

Gr5

DIN912

M5*25

Cold punching hex

1126

Hexagon Socket Head

Gr5

DIN912

M5*30

Cold punching hex

6954

Hexagon Socket Head

Gr5

DIN912

M5*35

Cold punching hex

8662

Hexagon Socket Head

Gr5

DIN912

M5*40

Cold punching hex

3080

Hexagon Socket Head

Gr5

DIN912

M6*12

Cold punching hex

7737

Hexagon Socket Head

Gr5

DIN912

M6*15

Cold punching hex

7376

Hexagon Socket Head

Gr5

DIN912

M6*18

Cold punching hex

2497

Hexagon Socket Head

Gr5

DIN912

M6*20

Cold punching hex

1527

Hexagon Socket Head

Gr5

DIN912

M6*25

Cold punching hex

6361

Hexagon Socket Head

Gr5

DIN912

M6*30

Cold punching hex

1809

Hexagon Socket Head

Gr5

DIN912

M6*40

Cold punching hex

5733

Hexagon Socket Head

Gr5

DIN912

M6*45

Cold punching hex

2566

Hexagon Socket Head

Gr5

DIN912

M8*10

Cold punching hex

1182

Hexagon Socket Head

Gr5

DIN912

M8*15

Cold punching hex

1197

Hexagon Socket Head

Gr5

DIN912

M8*20

Cold punching hex

3553

Hexagon Socket Head

Gr5

DIN912

M8*30

Cold punching hex

2151

Hexagon Socket Head

Gr5

DIN912

M8*35

Cold punching hex

5119

Hexagon Socket Head

Gr5

DIN912

M8*40

Cold punching hex

6485

Hexagon Socket Head

Gr5

DIN912

M8*45

Cold punching hex

4483

Hexagon Socket Head

Gr5

DIN912

M8*50

Cold punching hex

2394

Hexagon Socket Head

Gr5

DIN912

M8*60

Cold punching hex

3270

Hexagon Socket Head

Gr5

DIN912

M10*20

Cold punching hex

5410

Hexagon Socket Head

Gr5

DIN912

M10*25

Cold punching hex

2900

Hexagon Socket Head

Gr5

DIN912

M10*30

Cold punching hex

1811

Hexagon Socket Head

Gr5

DIN912

M10*40

Cold punching hex

3420

Hexagon Socket Head

Gr5

DIN912

M10*45

Cold punching hex

1828

Hexagon Socket Head

Gr5

DIN912

M12*35

Cold punching hex

4484

Hexagon Socket Head

Gr5

DIN912

M12*40

Cold punching hex

5690

Hexagon Socket Head

Gr5

DIN912

M12*45

Cold punching hex

2896

Hexagon Socket Head

Gr5

DIN912

M12*50

Cold punching hex

3112

Hex Nuts

Gr2

DIN934

M3

Machining

6946

Hex Nuts

Gr2

DIN934

M4

Machining

19236

Hex Nuts

Gr2

DIN934

M5

Machining

17519

Hex Nuts

Gr2

DIN934

M6

Hot forging

15052

Hex Nuts

Gr2

DIN934

M8

Hot forging

7794

Hex Nuts

Gr2

DIN934

M10

Hot forging

8275

Hex Nuts

Gr2

DIN934

M12

Hot forging

1014

Hex Nuts

Gr2

DIN934

M16

Hot forging

1123

Hex Nuts

Gr5

DIN934

M3

Machining

51922

Hex Nuts

Gr5

DIN934

M4

Machining

1121

Hex Nuts

Gr5

DIN934

M5

Machining

1751

Flat gasket

Gr2

DIN125

M3

Punching

2597

Flat gasket

Gr2

DIN125

M4

Punching

28950

Flat gasket

Gr2

DIN125

M5

Punching

13665

Flat gasket

Gr2

DIN125

M6

Punching

40216

Flat gasket

Gr2

DIN125

M8

Punching

27494

Flat gasket

Gr2

DIN125

M10

Punching

3679

Flat gasket

Gr2

DIN125

M12

Punching

6130

Flat gasket

Gr2

DIN125

M16

Punching

6890

Flange bolt

Gr5

DIN6921

M6*10

Machining

6352

Flange bolt

Gr5

DIN6921

M6*15

Machining

8220

Flange bolt

Gr5

DIN6921

M6*20

Machining

7490

Flange bolt

Gr5

DIN6921

M6*25

Machining

2221

Flange bolt

Gr5

DIN6921

M6*30

Machining

5537

Flange bolt

Gr5

DIN6921

M6*40

Machining

5980

Flange bolt

Gr5

DIN6921

M8*15

Machining

2114

Flange bolt

Gr5

DIN6921

M8*20

Machining

4162

Flange bolt

Gr5

DIN6921

M8*30

Machining

1381

Flange bolt

Gr5

DIN6921

M8*40

Machining

9143

Flange bolt

Gr5

DIN6921

M8*50

Machining

4451

Flange bolt

Gr5

DIN6921

M10*20

Machining

5998

Flange bolt

Gr5

DIN6921

M10*30

Machining

1370

The Comparison of Hot Forging and Machining

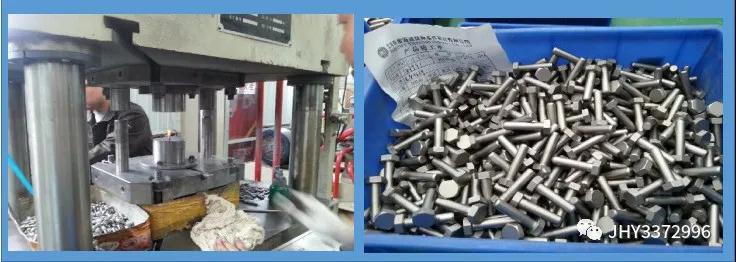

Hot Forging

titanium bolts

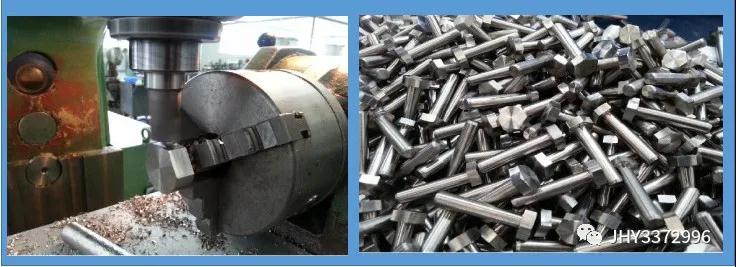

Machining
titanium bolts
The advantage of Hot Forging Products

1. Increasing the yield rate, improve manufacturing efficiency, reduce manufacturing cost, and make the product price more reasonable;Cost, make the product price more reasonable;

2. Guarantee the consistency of products to the greatest extent;

3. Optimize the internal forging structure of the finished product and improve the mechanical performance of the product;

4. Improve the surface hardness of the product, enhance the wear resistance of the product, and solve the self-locking phenomenon of titanium products due to stickiness when tightening;

5. Improve the corrosion resistance of the product;

6. The processing and manufacturing operations are simple, and automated mass production can be realized.


The advangage of Machining Products

1. The surface is more smooth and beautiful, the size is more accurate, but the cost is high.

titanium bolts
